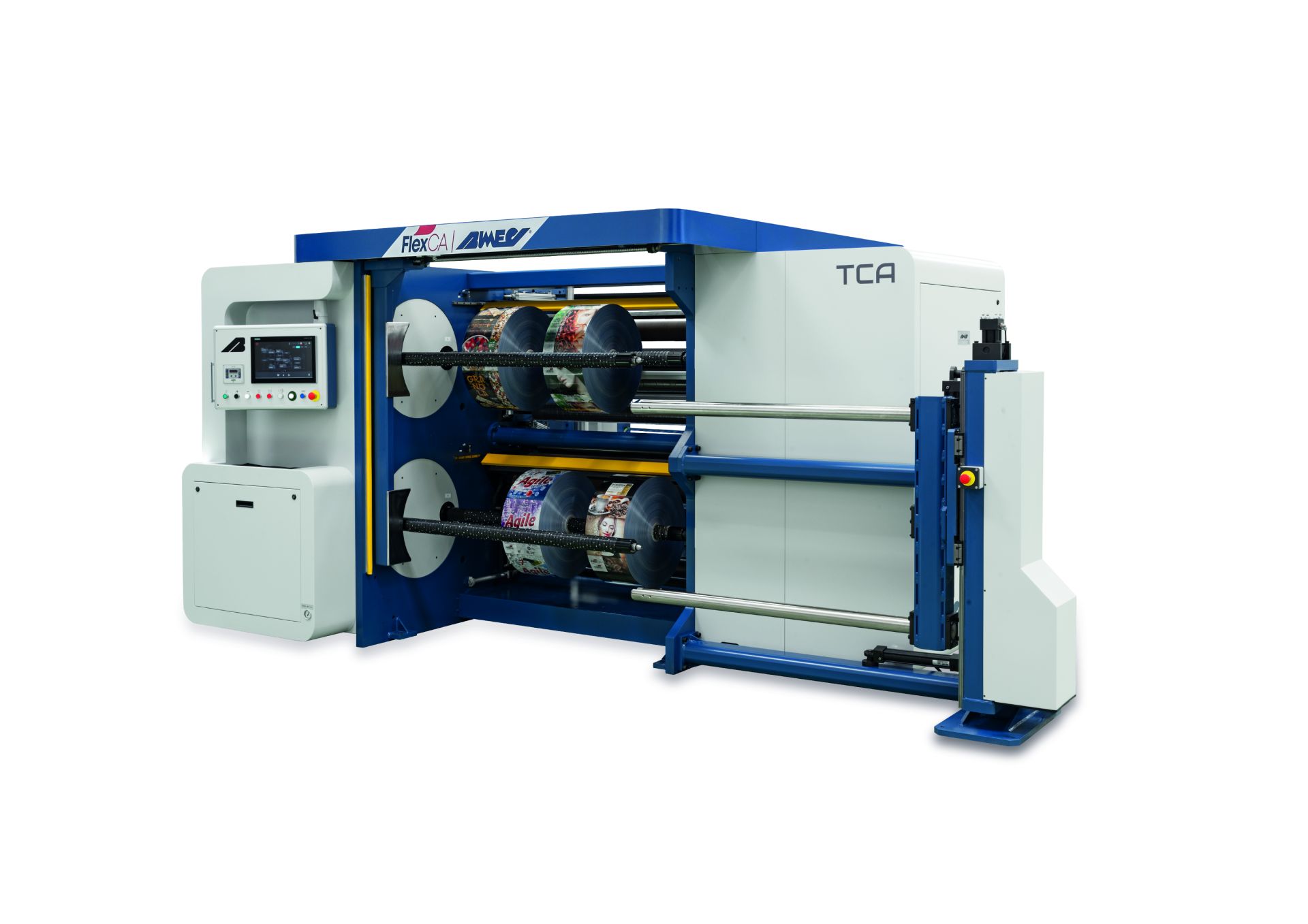

Duplex turret slitter rewinders series TCA 60/80
Duplex Turret Slitter Rewinder series TCA are addressed to converters who need high machine performance and high speed.
The models in this series are highly automated to eliminate downtime during the working cycle, increase productivity and enhance the operator’s ease of use.
Material quality and strength of the machine ensure a longlasting use over the years.
- Duplex turret slitter rewinder suitable for the slitting of plastic films, paper and laminates and all the materials used in the flexible packaging market
- Unwind roll on shaftless unwind stand placed on the rear of the machine with lifting from floor level to working position
- Machine equipped with 3 asynchronous a.c. motors and digital inverter

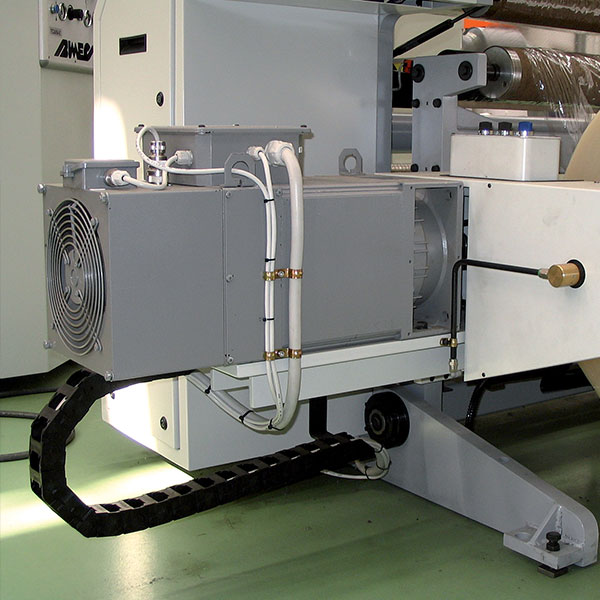

- Automatic and programmable tension control at both the unwind and rewind
- Touchscreen operator panel for data setting and visualization, recipe storage and diagnostic
- Easy web threading
- Quick system for the unloading of finished rolls

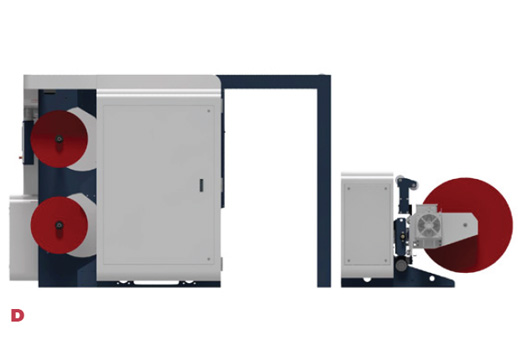

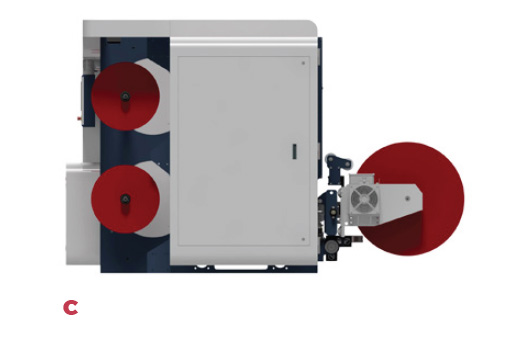

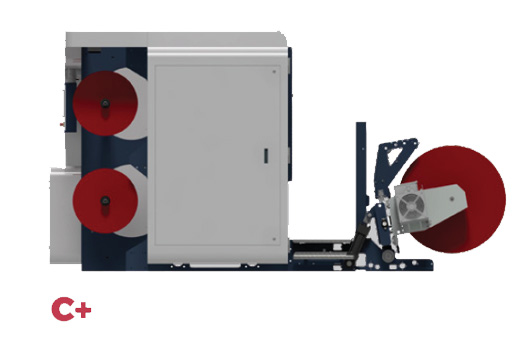

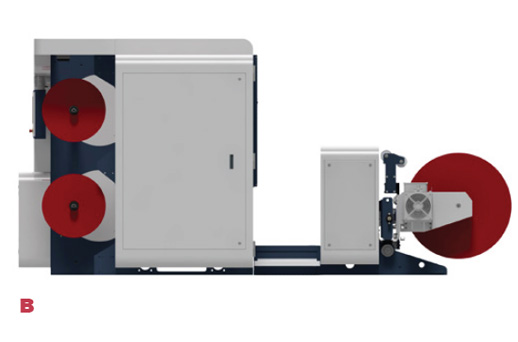

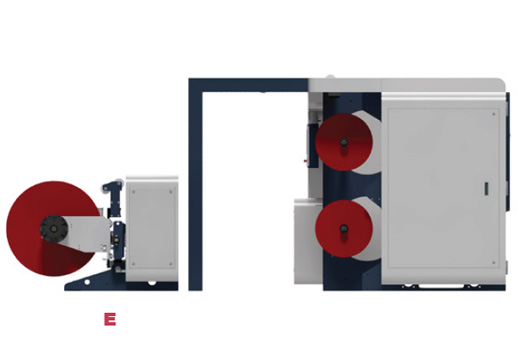

- Model available in several versions (as shown in the drawing)
| TECHNICAL DATA | TCA |
| Materials | Plastics, papers, laminates |
| Material thickness | 12 - 300 μm (other available on request) |
| Material widths | 1050 - 1350 - 1650 - 1850 mm (other available on request) |
| Parent roll diameter | 1.000/1.200 mm (other available on request) |
| Finished roll diameter | TCA60 max. 600 mm TCA80 max. 800 mm |
| Finished roll weights | TCA60 max. 680 kg (distributed to both axles) TCA80 max. 800 kg (distributed to both axles) |
| Slitting systems | Razor blades - Mechanical Shear Knives - Pneumatic Knives - B-Knife |
| Slitting width | ≥ 20 mm |

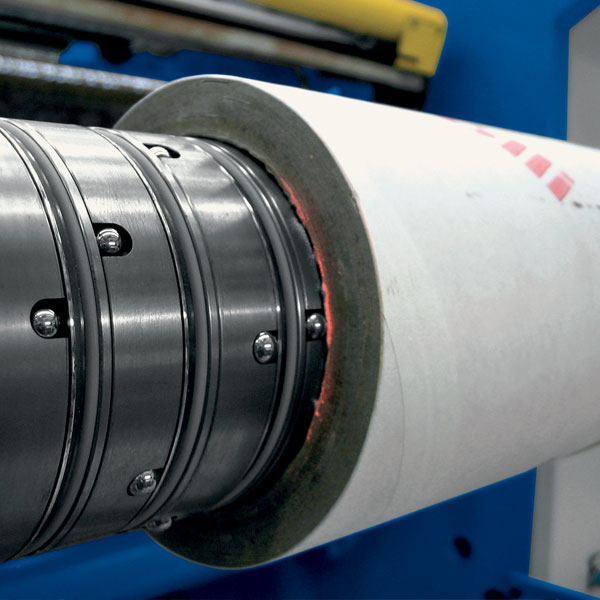

| Winding cores | 70 mm - 3” - 6” (other available on request) |
| Machine speed | 600-800 mpm | 1968-2624 fpm |
Send us an email
Machine details
- flexibility in the configuration of slitting unit in conformity with the kind of materials to slit and using the max machine

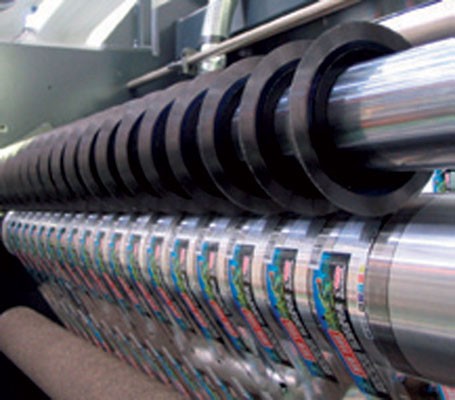

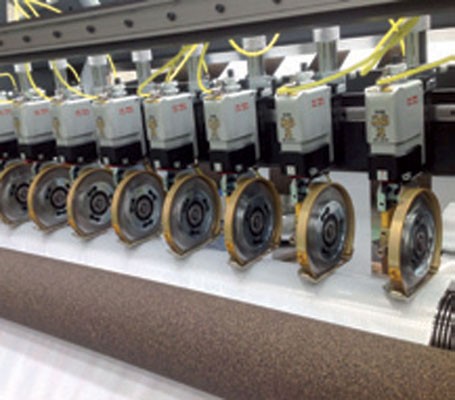

- performance (tangential and wrap) several slitting methods: razor blades, mechanical shear knives, independent mechanical knives, pneumatic knives

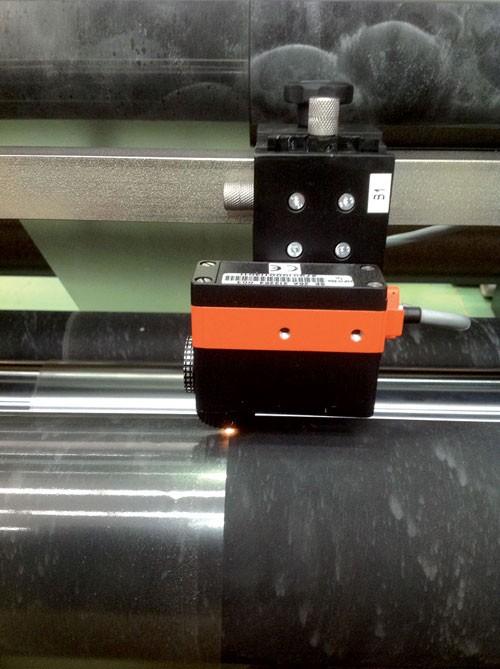

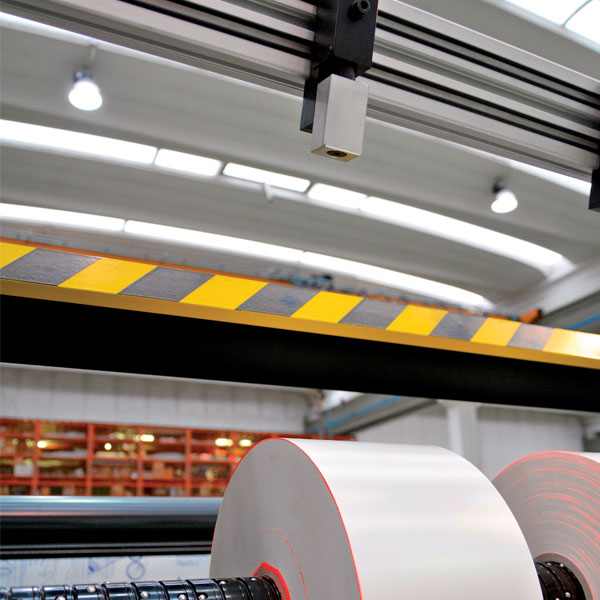

- positioning systems: manual - through a laser pointer -semi-automatic and automatic

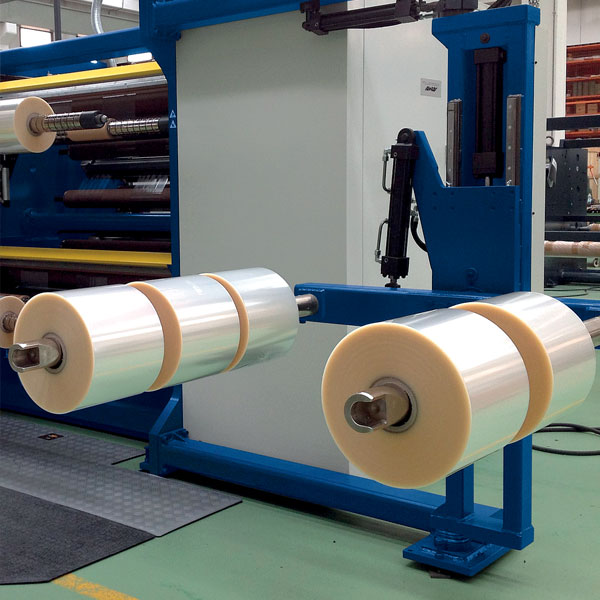

Several systems for the quick unloading of finished rolls by automatic pusher unit and unloading device

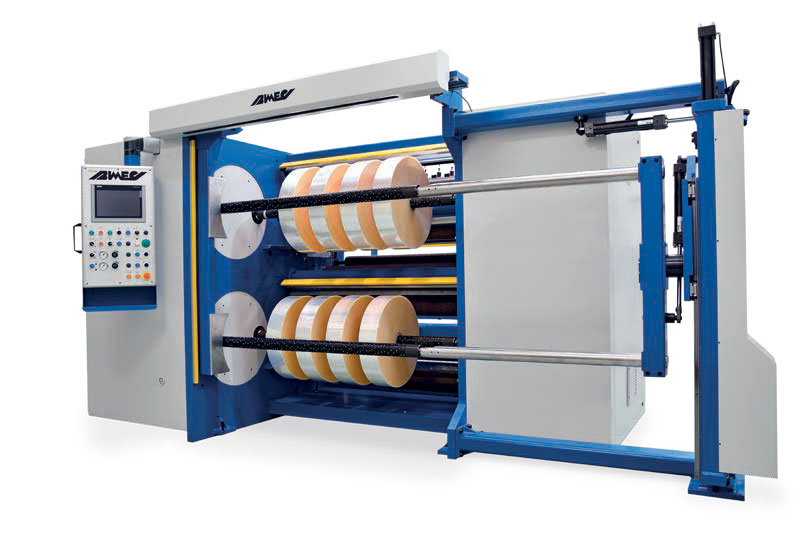

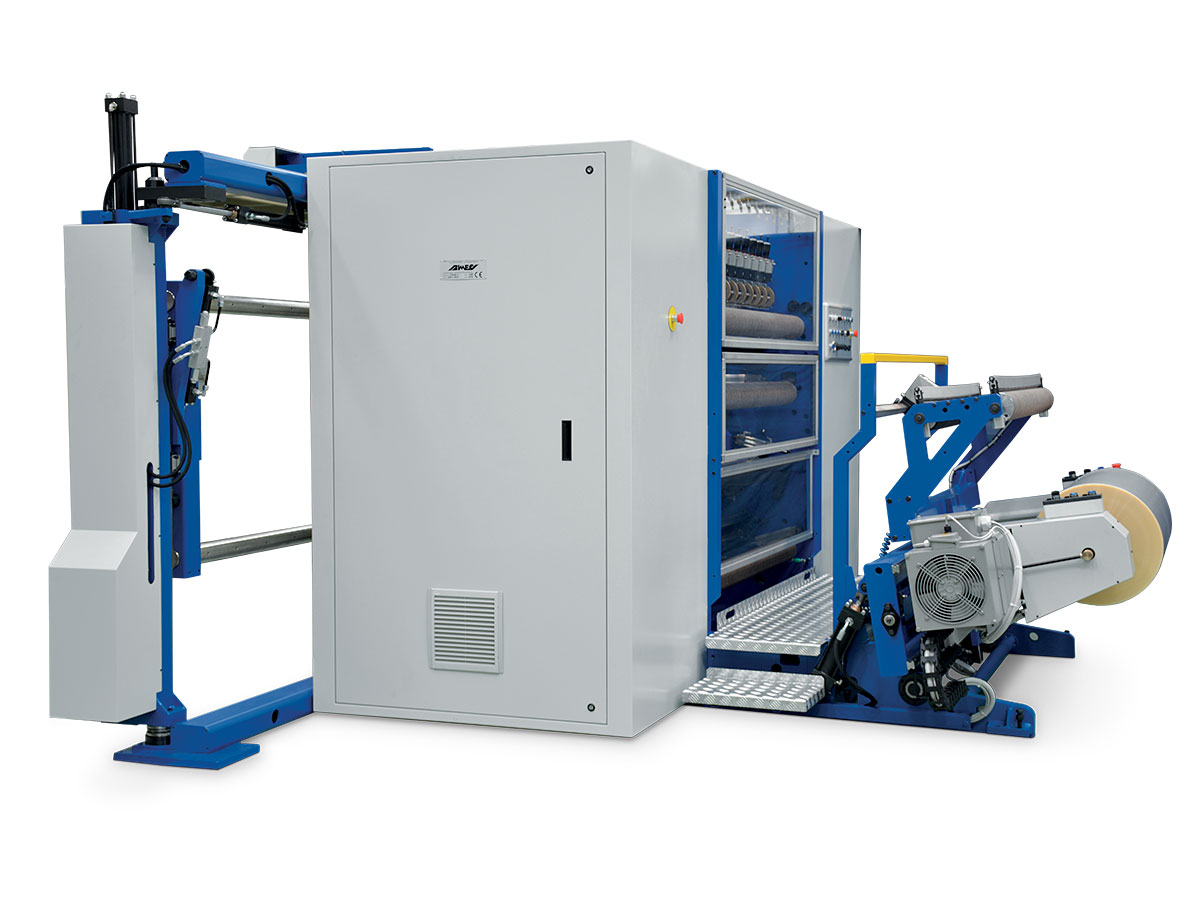

Duplex turret slitter rewinder TCA 60/80C+
The Duplex Turret Slitter Rewinder TCA60/80C+ has been designed to combine the advantages of a compact design to the ones of a configuration with separate unwind stand
- Possibility of fitting a splicing table
- Easy access to the slitting area
- Short web-path under running board and well isolated from the floor to guarantee the hygiene standards and prevent any contamination of the material with dust.
This machine is addressed to converters who need high machine performance and high speed.
The TCA60/80C+, as well as all the models in this series, is highly automated to eliminate downtime during the working cycle, increase productivity and enhance the operator’s ease of use.
Material quality and strength of the machine ensure a long-lasting use over the years.
- Duplex turret slitter rewinder suitable for the slitting of plastic films, paper and laminates and all the materials used in the flexible packaging market
- Unwind roll on semi-integrated shaftless unwind stand placed on rear of machine with lifting from floor level to working position
- Machine equipped with 3 asynchronous a.c. motors and digital inverter
- Automatic and programmable tension control at both the unwind and rewind
- Touchscreen operator panel for data setting, visualization, recipe storage and diagnostic
- Easy web threading

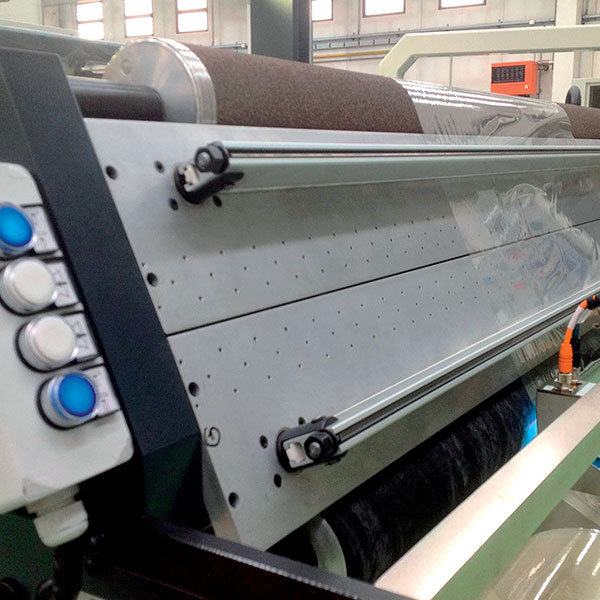

- Possibility to equipp the machine with a splicing table
- Quick system for the unloading of finished rolls
| TECHNICAL DATA | TCA 60C+ | TCA 80C+ |
| Web widths | 1050-1350-1650-1850 mm | 40"- 52"- 63"- 73" | 1050-1350-1650-1850 mm | 40"- 52"- 63"- 73" |
| Max batch roll diameter | 1000 mm (1200 mm) | 40" (48") | 1000 mm (1200 mm) | 40" (48") |
| Max finished roll diameter | 610 mm | 24" | 800 mm | 31 ½" |
| Minimum slitting width | 20 mm | 0,79" | 20 mm | 0,79" |
| Max machine speed | 600-800 mpm | 1968-2624 fpm | 600-800 mpm | 1968-2624 fpm |
