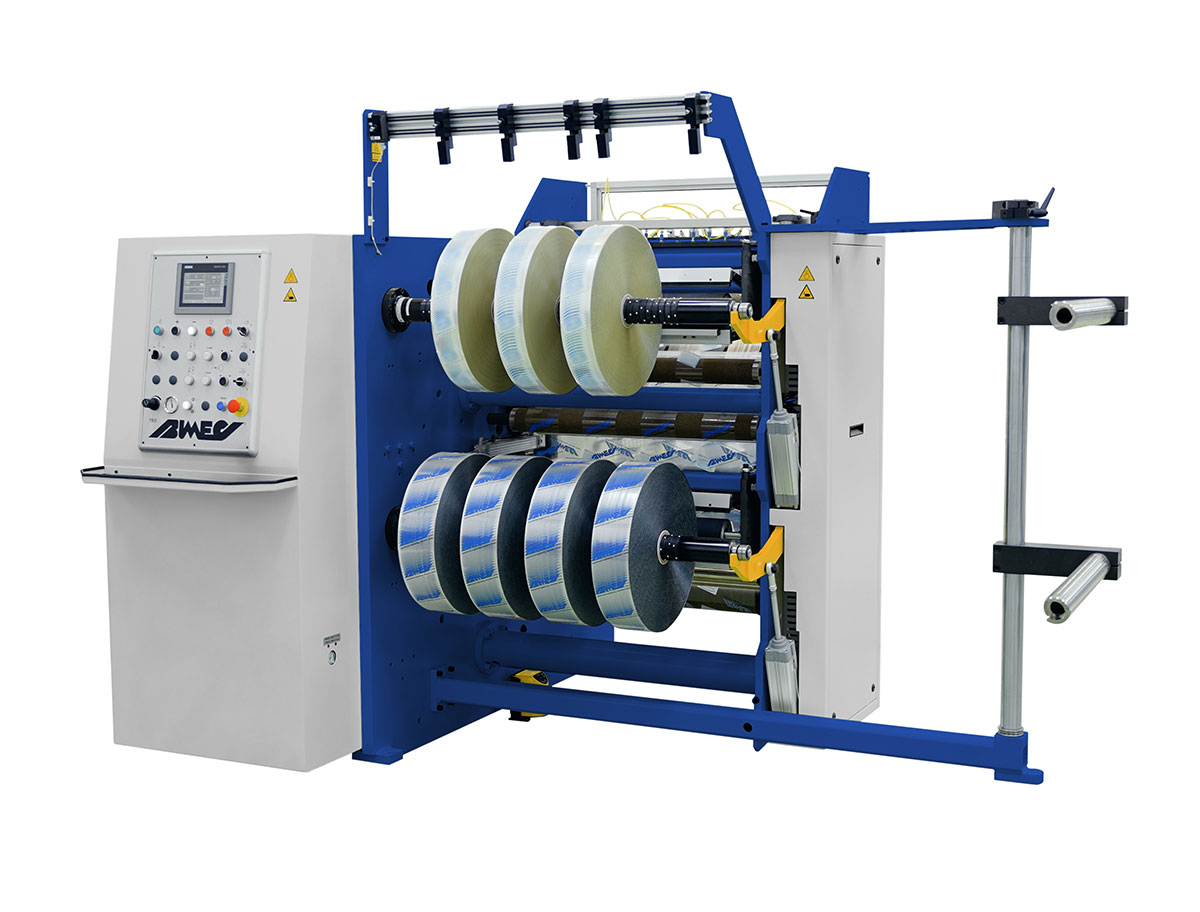

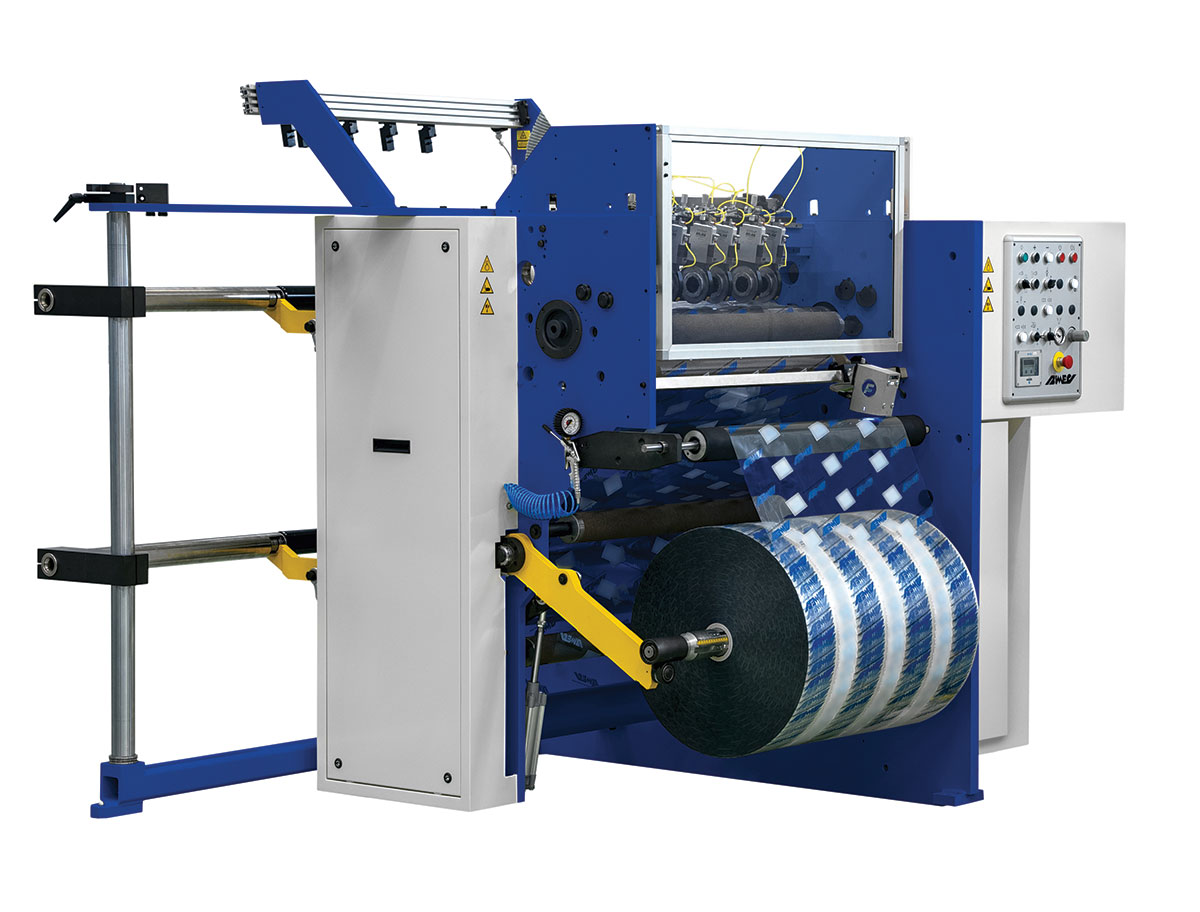

Dual Spindle Slitter Rewinder for Narrow Web TBS
Duplex Slitter Rewinder for narrow web, suitable for slitting and rewinding plastic films, paper and laminates.
Possibility to supply the machine with a slitting unit - both with razor blades and shear knives - mounted inside a lift-out module through guides to allow the setting up of slitting combinations in offline mode and in easy position for the operator.
- Duplex Slitter Rewinder for narrow web, suitable for slitting and rewinding plastic films, paper and laminates
- Batch roll on unwind stand placed on the rear of machine
- Asynchronous AC motors with digital inverters
- Rewind on differential air shafts
- Automatic and programmable tension controls both in unwinding and rewinding
- Touchscreen operator panel for data setting and visualization and fault diagnostic
- Electric and pneumatic controls easy to reach
- Possibility to fit a splicing table in unwinding
| TECHNICAL DATA | TBS |
| Web widths | fino a 800 mm | up to 31½" |
| Max batch roll diameter | 800 mm | 31½" |
| Max finished roll diameter | 610 mm | 24" |
| Minimum slitting width | 10 mm | 0,40" |
| Max machine speed | 600 mPm | 1968 fpm |
